Forged Hex Head Bushing A105 Threaded #3000 - #6000

hex head bushing

Product info

Supplier: TAN GIA BAO DV TRADING INVESTMENT CO.,LTD
Address: 137 National Highway 1A, Binh Hung Hoa Ward, Binh Tan District, Ho Chi Minh City, Viet Nam
Phone: +84 982 384 688
Email: theptangiabao@gmail.com
Website: https://theptangiabao.com/
Insurance: 12 months
Status: New 100%
Origin: China, Korea, Malaysia, Thailand, Japan, EU, G7

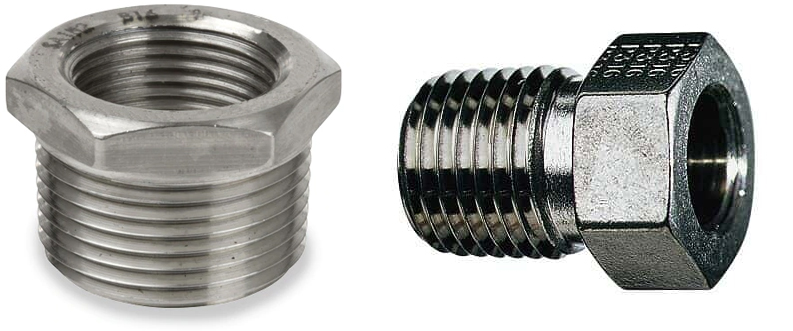

Hex heads or pressure bushing hex head #3000, the English name is Hex Head Bushing, is a type of pressure fitting used to connect two pipes of different sizes directly, or connect with other accessories such as installing valves. , install tubing, install pressure gauge…. This type of product connects with NPT or BSPT external thread, ISO thread.

NPT internal thread connection form so for ease of pipe installation, the thread is also machined outside the NPT thread system. With this type of connection, it will be very easy and quick to install the piping system. NPT thread is a type of thread with a large thread pitch, can withstand high pressure, so it is difficult to break or crack the thread root during construction.



   hex heads



Tan Gia Bao DV Trading Investment Co., LTD

Providing a full range of steel pipe accessories, welding accessories and industrial supplies according to customer needs

Standard: ASME B16.11

Material: ASTM A105/A105N (SA105/SA105N) steel; Stainless steel: F304/304L, F316/316L

Size: 1/2'' – 4'' (DN15-DN100)

Pressure/Class: 3000#, 6000#

Connection type: Socket welded

Origin: China



bushing

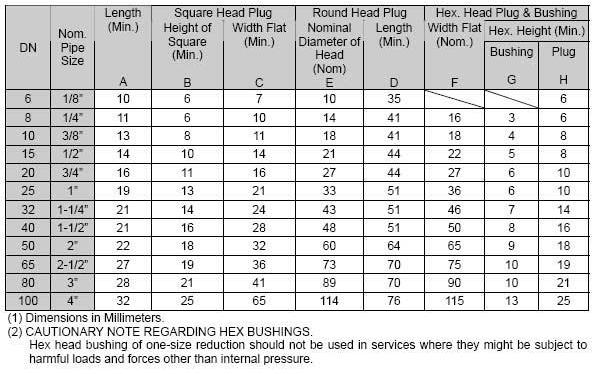

DIMENSIONS OF THREADED BUSHING (BS 3799) (In mm)

Nominal
Pipe
Size

Length
(Minimim)
A

Hex Plugs & Bushings

Width Flats
(Nominal)
F

Hex Height (Min.)

Bushing
G

Plug
H

1/8”

9.7

11.2


6.4

1/4”

11.2

15.7

3.0

6.4

3/8”

12.7

17.5

4.1

7.9

1/2”

14.2

22.4

4.8

7.9

3/4”

15.7

26.9

5.6

9.7

1”

19.1

35.1

6.4

9.7

1-1/4”

20.6

44.5

7.1

14.2

1-1/2”

20.6

50.8

7.9

15.7

2”

22.4

63.5

8.6

17.5

2-2/2”

26.9

76.2

9.7

19.1

3”

28.4

88.9

10.4

20.6

4”

31.8

117.3

12.7

25.4

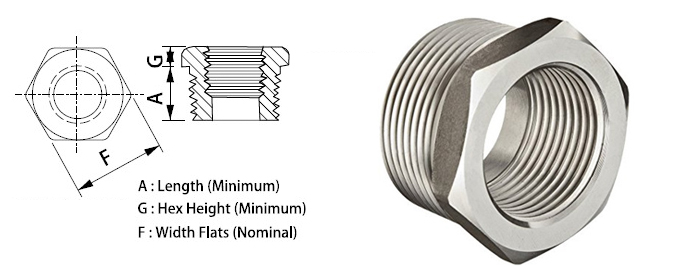

Threaded Hex Head Bushing Dimensions:

hex head bushing dimensions

ASME B16.11 Threaded Bushing Size Chart

NPS

Minimum Length
E

Minimum Hex Height
C

Nominal
F

1/2

14

5

22

3/4

16

6

27

1

19

6

35

1.1/4

21

7

44.5

1.1/2

21

8

51

2

22

9

63.5

2.1/2

27

10

76

3

28

10

89

4

32

13

117.5



Tan Gia Bao DV Trading Investment Co., LTD

Providing a full range of steel pipe accessories, welding accessories and industrial supplies according to customer needs

Their typical applications can include:

Applied in water supply and drainage systems of industrial parks, production areas, residential areas,…
Used widely in fire protection systems.
Used in oil pipelines, gas pipelines, gas pipelines, etc.
Shipbuilding industry.
Used in the chemical industry, substances that are corrosive, oxidizing, etc.
Food production industry, food, pharmaceuticals,…
Applications in textile, dyeing,…
Cement, paper, pulp manufacturing industry,…
Fertilizer factory.
