Forged Hex Head Plug A105 Threaded #3000 - #6000

hex head plug

Product info

Supplier: TAN GIA BAO DV TRADING INVESTMENT CO.,LTD
Address: 137 National Highway 1A, Binh Hung Hoa Ward, Binh Tan District, Ho Chi Minh City, Viet Nam
Phone: +84 982 384 688
Email: theptangiabao@gmail.com
Website: https://theptangiabao.com/
Insurance: 12 months
Status: New 100%
Origin: China, Korea, Malaysia, Thailand, Japan, EU, G7

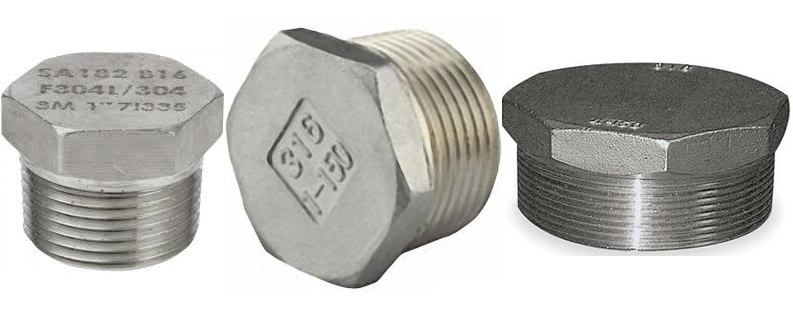

Hex Plugs or also known as Hex Head Plugare used to close the system safely. Hexagon threaded plugs A105 3000lbs are used for pressure testing. For high demand systems, industrial, food manufacturing etc.


Steel grade A105 – is a very common carbon steel used for pipe and fitting components, such as 1 1/2” NPT hex nipple, cl.3000 A105. This carbon steel is used for pressure systems for ambient and higher temperatures. The Hex Head Plug has good machinability as in the case of each low alloy steel. Grade A105, A182 are good weldable steels.



   hex plugs



Tan Gia Bao DV Trading Investment Co., LTD

Providing a full range of steel pipe accessories, welding accessories and industrial supplies according to customer needs

Standard: ASME B16.11

Material: ASTM A105/A105N (SA105/SA105N) steel; Stainless steel: F304/304L, F316/316L

Size: 1/2'' – 4'' (DN15-DN100)

Pressure/Class: 3000#, 6000#

Connection type: Socket welded

Origin: China



hexagon head plug

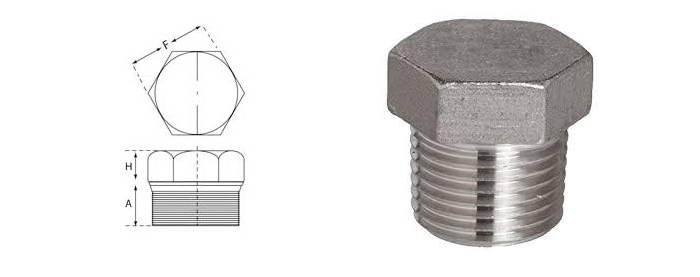

DIMENSIONS OF THREADED PLUG (BS 3799) (In mm)

Nominal
Pipe
Size

Length
(Minimim)
A







Plugs Square Head

Plugs Round Head

Hex Plugs & Bushings

Height of
Square
(Minimum)
B

Width
Flats
(Minimum)
C

Nominal
Diameter
of Head
E

Length
(Minimum)
D

Width Flats
(Nominal)
F

Hex Height (Min.)

Bushing
G

Plug
H

1/8”

9.7

6.6

7.1

10.4

35.1

11.2


6.4

1/4”

11.2

6.6

9.7

13.5

41.1

15.7

3.0

6.4

3/8”

12.7

7.9

11.2

17.5

41.1

17.5

4.1

7.9

1/2”

14.2

9.7

14.2

21.3

44.5

22.4

4.8

7.9

3/4”

15.7

11.2

15.7

26.9

44.5

26.9

5.6

9.7

1”

19.1

12.7

20.6

33.3

50.8

35.1

6.4

9.7

1-1/4”

20.6

14.2

23.9

42.9

50.8

44.5

7.1

14.2

1-1/2”

20.6

15.7

28.4

48.5

50.8

50.8

7.9

15.7

2”

22.4

17.5

33.3

60.5

63.5

63.5

8.6

17.5

2-2/2”

26.9

19.1

38.1

73.2

69.9

76.2

9.7

19.1

3”

28.4

20.6

42.9

88.9

69.9

88.9

10.4

20.6

4”

31.8

25.4

53.5

114.3

76.2

117.3

12.7

25.4

ASME B16.11 Plug Sizes- NPS 1/2 to 4:

NPS

Minimum Length
E

Minimum Hex Height
J

Nominal
F

1/2

14

8

22

3/4

16

10

27

1

19

10

35

1.1/4

21

14

44.5

1.1/2

21

16

51

2

22

18

63.5

2.1/2

27

19

76

3

28

21

89

4

32

25

117.5



Tan Gia Bao DV Trading Investment Co., LTD

Providing a full range of steel pipe accessories, welding accessories and industrial supplies according to customer needs

Their typical applications can include:

Applied in water supply and drainage systems of industrial parks, production areas, residential areas,…
Used widely in fire protection systems.
Used in oil pipelines, gas pipelines, gas pipelines, etc.
Shipbuilding industry.
Used in the chemical industry, substances that are corrosive, oxidizing, etc.
Food production industry, food, pharmaceuticals,…
Applications in textile, dyeing,…
Cement, paper, pulp manufacturing industry,…
Fertilizer factory.
