Forged Tee A105 Threaded #3000 - #6000

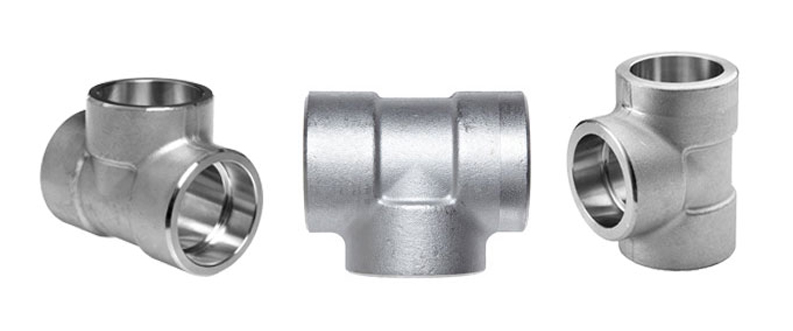

forged tee

Product info

Supplier: TAN GIA BAO DV TRADING INVESTMENT CO.,LTD
Address: 137 National Highway 1A, Binh Hung Hoa Ward, Binh Tan District, Ho Chi Minh City, Viet Nam
Phone: +84 982 384 688
Email: theptangiabao@gmail.com
Website: https://theptangiabao.com/
Insurance: 12 months
Status: New 100%
Origin: China, Korea, Malaysia, Thailand, Japan, EU, G7

Pressure welding tees A105 and A182, English name Threaded Tee, are used to create branches at a right angle of 90 degrees compared to the flow direction in high pressure pipeline systems. Pressure cage welding tee is used when the branch diameter is smaller than the diameter of the main pipeline.

Socket weld connection type, commonly used symbol is SW, the pipe is inserted into the inner hole, the inner hole size is designed to fit the outside diameter of each pipe size, then welded around the pipe leg of the next section. External contact between solder and tube.



   tee threaded



Tan Gia Bao DV Trading Investment Co., LTD

Providing a full range of steel pipe accessories, welding accessories and industrial supplies according to customer needs

Standard: ASME B16.11

Material: ASTM A105/A105N (SA105/SA105N) steel; Stainless steel: F304/304L, F316/316L

Size: DN15, DN20 … DN100

Pressure/Class: 3000#, 6000#

Connection type: Socket welded

From China



tee pipe size

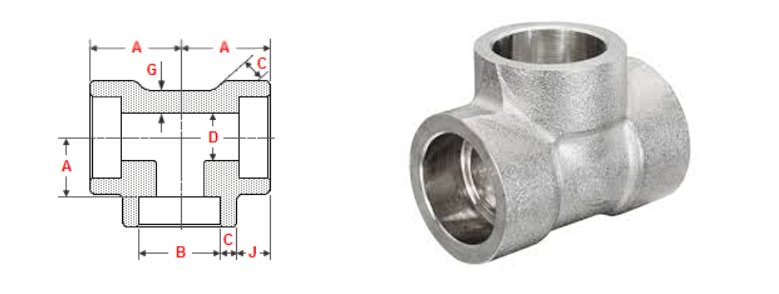

Socket Weld Class 3000 Socket Weld Tee Dimensions NPS 1/2 to 4

NPS

Socket Bore

Depth Socket

Bore dia

B

J

D

1/2

21.95
21.70

10

16.6
15

3/4

27.30
27.05

13

21.7
20.2

1

34.05
33.80

13

27.4
25.9

1.1/4

42.80
42.55

13

35.8
34.3

1.1/2

48.90
48.65

13

41.7
40.1

2

61.35
61.10

16

53.5
51.7

2.1/2

74.20
73.80

16

64.2
61.2

3

90.15
89.80

16

79.5
46.4

4

115.80
115.45

19

103.8
100.7

1/2

4.65
4.10

3.75

15.5

3/4

4.90
4.25

3.90

19.5

1

5.70
5.00

4.55

22

1.1/4

6.05
5.30

4.85

27

1.1/2

6.35
5.55

5.10

32

2

6.95
6.05

5.55

38

2.1/2

8.75
7.65

7.00

41.5

3

9.50
8.30

7.60

57.5

4

10.70
9.35

8.55

66.5

Socket Weld Class 6000 Tee Dimensions NPS 1/2 to 2

NPS

Socket Bore

Depth Socket

Bore dia

B

J

D

1/2

21.95
21.70

10

12.5
11

3/4

27.30
27.05

13

16.3
14.8

1

34.05
33.80

13

21.5
19.9

1.1/4

42.80
42.55

13

30.2
28.7

1.1/2

48.90
48.65

13

34.7
33.2

2

61.35
61.10

16

43.6
42.1

1/2

5.95
5.20

4.80

19.5

3/4

6.95
6.05

5.55

22.5

1

7.90
6.95

6.35

27

1.1/4

7.90
6.95

6.35

32

1.1/2

8.90
7.80

7.15

38

2

10.90
9.50

8.75

41





Tan Gia Bao DV Trading Investment Co., LTD

Providing a full range of steel pipe accessories, welding accessories and industrial supplies according to customer needs

Their typical applications include:

Applied in water supply and drainage systems of industrial parks, production areas, residential areas,…
Used widely in fire protection systems.
Used in oil pipelines, gas pipelines, gas pipelines, etc.
Shipbuilding industry.
Used in the chemical industry, substances that are corrosive, oxidizing, etc.
Food production industry, food, pharmaceuticals,…
Applications in textile, dyeing,…
Cement, paper, pulp production industry,…
Fertilizer factory.
